Plot thermo data vs. temperature for a plasma of H2, O2 or N2 in LTE.

This example plots the thermo data of H2, O2 and N2 as a function of temperature.

The data for mass enthalpy, density, and heat capacity are compared to reference data from the literature.

References data

The reference data for the mass enthalpy, density, and heat capacity at 1 atm are taken from:

• [Boulos2023]

Tags: thermo hydrogen H2 O2 N2 plasma thermal conductivity electrical conductivity viscosity

Import the required libraries.

import matplotlib.pyplot as plt
import seaborn as sns

from rizer.io.thermo_transport_data_reader import ThermoTransportDataReader

# Set the style of the plots.
sns.set_theme("talk")

Load reference data.

data_H2_Boulos2023 = ThermoTransportDataReader(
    gas_name="H2", pressure_atm=1, source="Boulos2023"
)
data_N2_Boulos2023 = ThermoTransportDataReader(
    gas_name="N2", pressure_atm=1, source="Boulos2023"
)
data_O2_Boulos2023 = ThermoTransportDataReader(
    gas_name="O2", pressure_atm=1, source="Boulos2023"
)

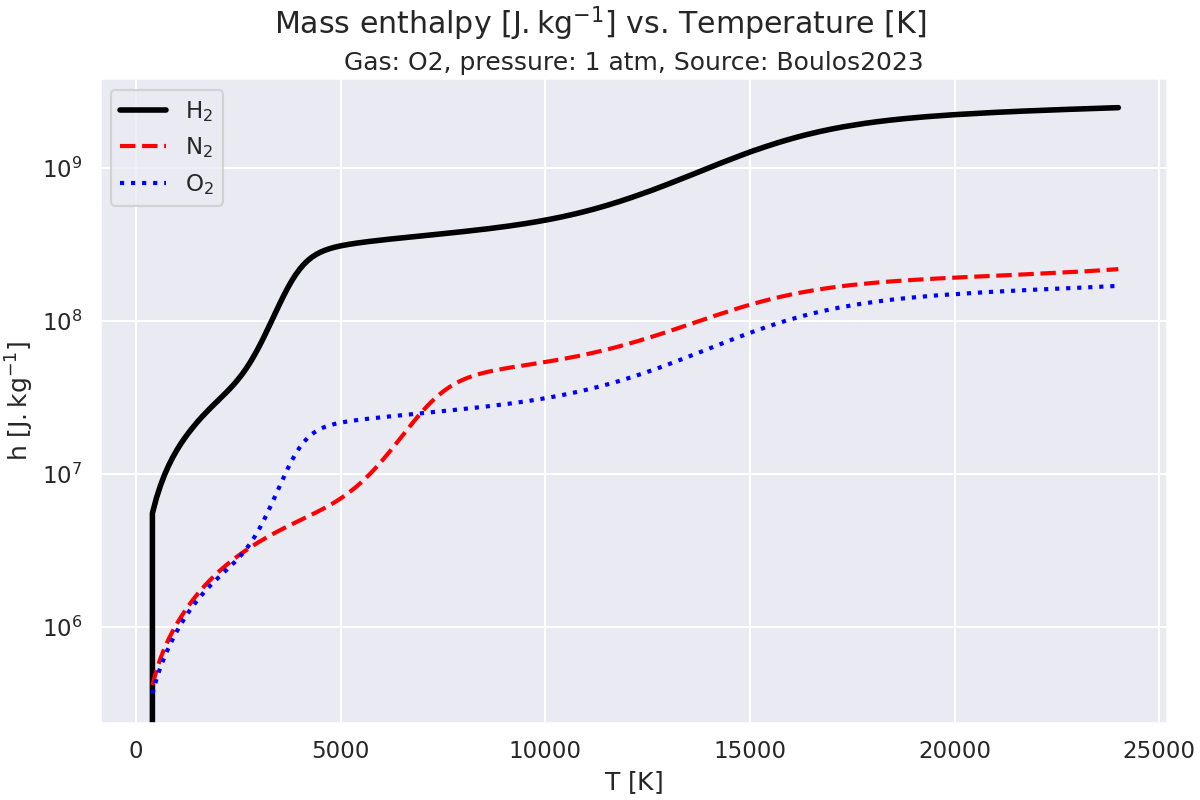

Plot the mass enthalpy vs. temperature.

fig, ax = data_H2_Boulos2023.plot(
    x="T",
    y="h",
    show=False,
    label=r"$\mathregular{H_2}$",
    ls="-",
    lw=4,
    color="black",
)
data_N2_Boulos2023.plot(
    x="T",
    y="h",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{N_2}$",
    ls="--",
    lw=3,
    color="red",
)
data_O2_Boulos2023.plot(
    x="T",
    y="h",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{O_2}$",
    ls=":",
    lw=3,
    color="blue",
)
ax.set_yscale("log")
ax.legend()

plt.show()

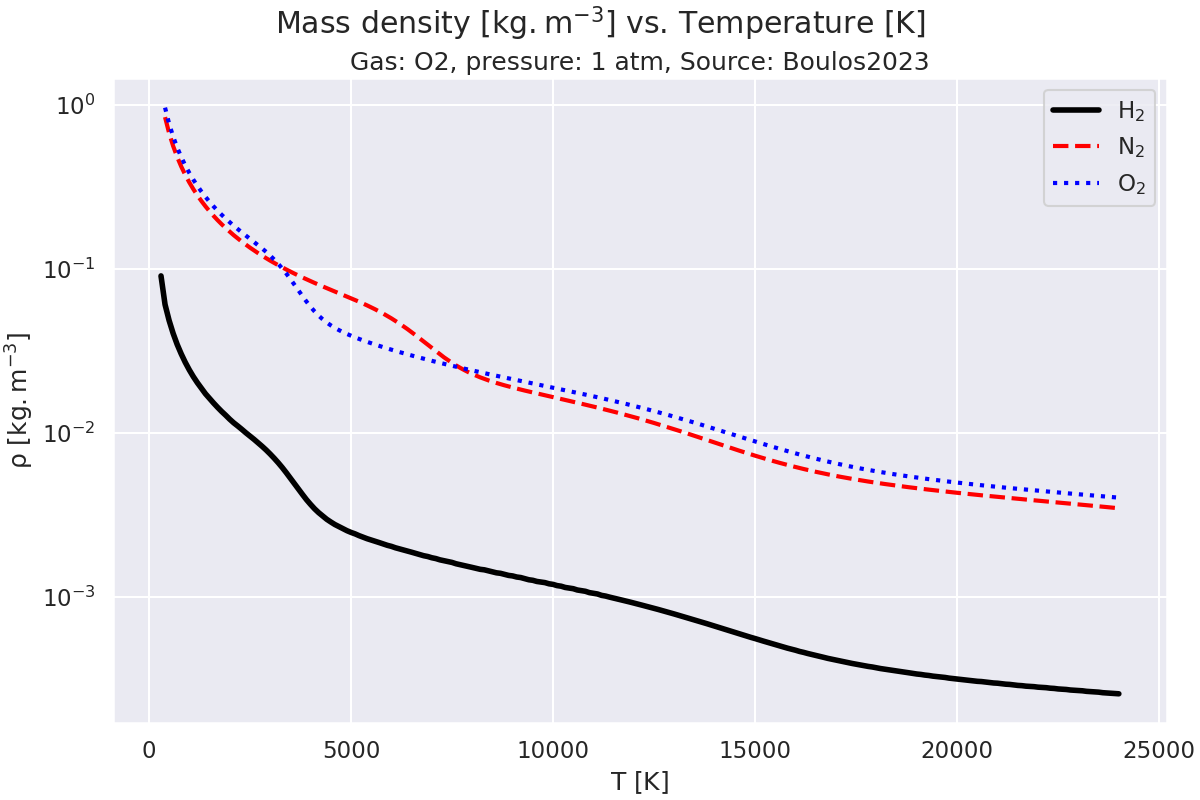

Plot the density vs. temperature.

fig, ax = data_H2_Boulos2023.plot(
    x="T",
    y="rho",
    show=False,
    label=r"$\mathregular{H_2}$",
    ls="-",
    lw=4,
    color="black",
)
data_N2_Boulos2023.plot(
    x="T",
    y="rho",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{N_2}$",
    ls="--",
    lw=3,
    color="red",
)
data_O2_Boulos2023.plot(
    x="T",
    y="rho",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{O_2}$",
    ls=":",
    lw=3,
    color="blue",
)
ax.set_yscale("log")
ax.legend()

plt.show()

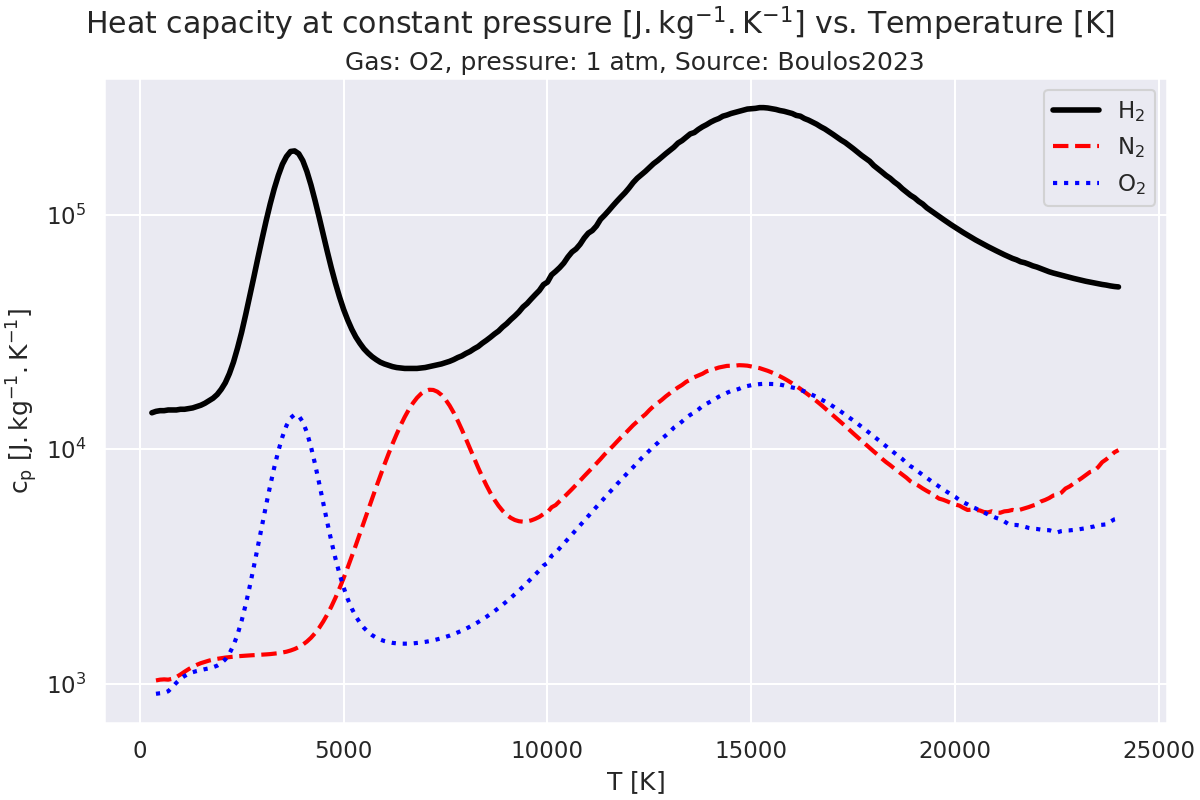

Plot the heat capacity vs. temperature.

fig, ax = data_H2_Boulos2023.plot(
    x="T",
    y="cp",
    show=False,
    label=r"$\mathregular{H_2}$",
    ls="-",
    lw=4,
    color="black",
)
data_N2_Boulos2023.plot(
    x="T",
    y="cp",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{N_2}$",
    ls="--",
    lw=3,
    color="red",
)
data_O2_Boulos2023.plot(
    x="T",
    y="cp",
    fig_ax=(fig, ax),
    show=False,
    label=r"$\mathregular{O_2}$",
    ls=":",
    lw=3,
    color="blue",
)
ax.set_yscale("log")
ax.legend()

plt.show()
