Plot thermodynamic and transport data vs. temperature for a plasma of H2, O2, N2, Ar, He in LTE.

This example plots the thermodynamic and transport data of H2, O2, N2, Ar, and He as a function of temperature.

References data

• [Boulos2023]

Tags: transport H2 O2 N2 Ar He plasma thermal conductivity electrical conductivity viscosity

Import the required libraries.

import matplotlib.pyplot as plt

from rizer.io.thermo_transport_data_reader import ThermoTransportDataReader
from rizer.misc.plt_utils import get_species_color, get_species_in_latex, set_mpl_style

# Set the style of the plots.
set_mpl_style(nb_columns=1)

Load reference data.

data_H2_Boulos2023 = ThermoTransportDataReader(
    gas_name="H2", pressure_atm=1, source="Boulos2023"
)
data_N2_Boulos2023 = ThermoTransportDataReader(
    gas_name="N2", pressure_atm=1, source="Boulos2023"
)
data_O2_Boulos2023 = ThermoTransportDataReader(
    gas_name="O2", pressure_atm=1, source="Boulos2023"
)
data_Ar_Boulos2023 = ThermoTransportDataReader(
    gas_name="Ar", pressure_atm=1, source="Boulos2023"
)
data_He_Boulos2023 = ThermoTransportDataReader(
    gas_name="He", pressure_atm=1, source="Boulos2023"
)

datas = [
    data_H2_Boulos2023,
    data_N2_Boulos2023,
    data_O2_Boulos2023,
    data_Ar_Boulos2023,
    data_He_Boulos2023,
]

# Plot options for all the plots.
plot_options = [
    {
        "ls": "-",
        "lw": 4,
        "color": get_species_color("H2"),
        "label": get_species_in_latex("H2"),
    },
    {
        "ls": "-",
        "lw": 3,
        "color": get_species_color("N2"),
        "label": get_species_in_latex("N2"),
    },
    {
        "ls": "-",
        "lw": 2,
        "color": get_species_color("O2"),
        "label": get_species_in_latex("O2"),
    },
    {
        "ls": "-",
        "lw": 3,
        "color": get_species_color("Ar"),
        "label": get_species_in_latex("Ar"),
    },
    {
        "ls": "-",
        "lw": 3,
        "color": get_species_color("He"),
        "label": get_species_in_latex("He"),
    },
]

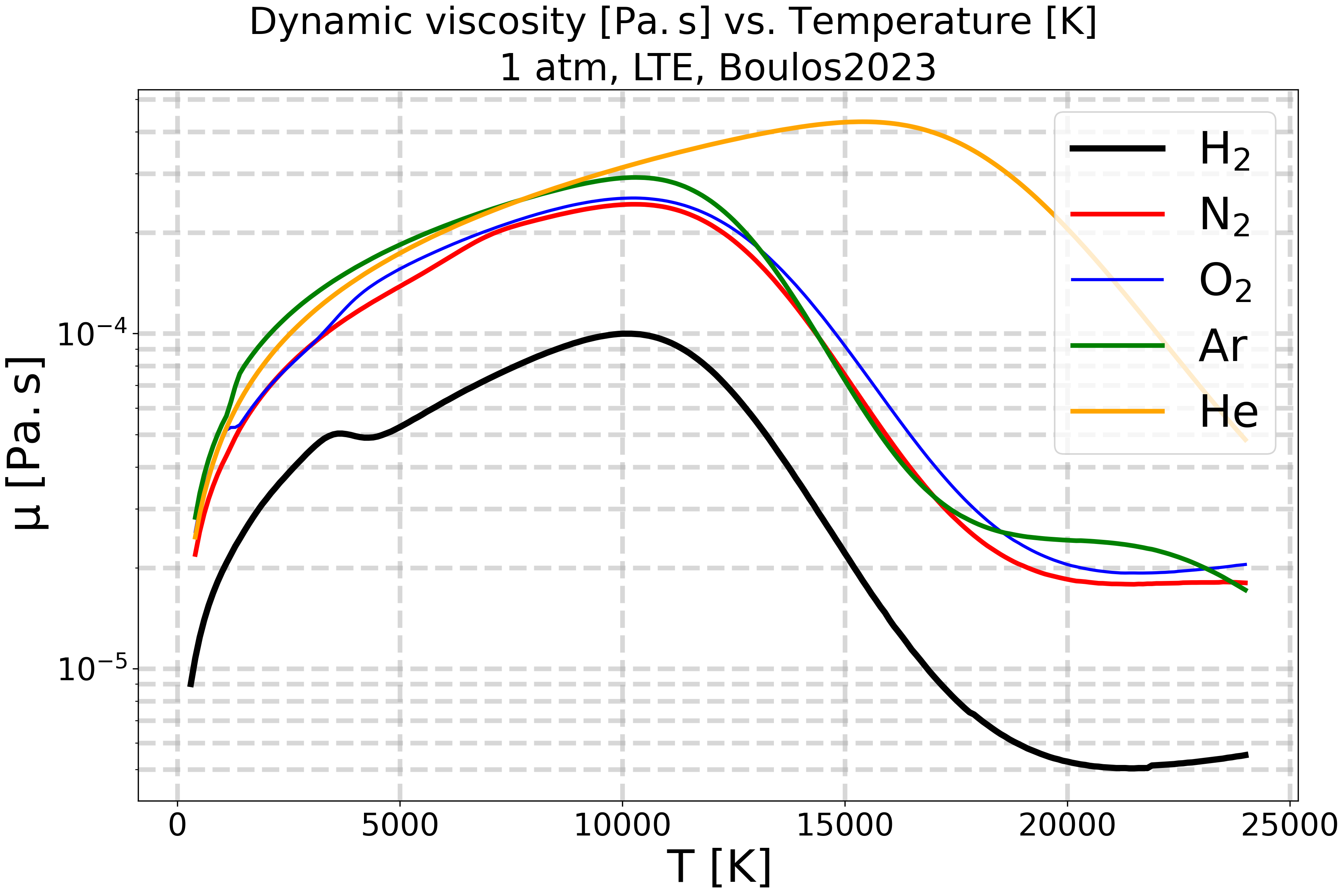

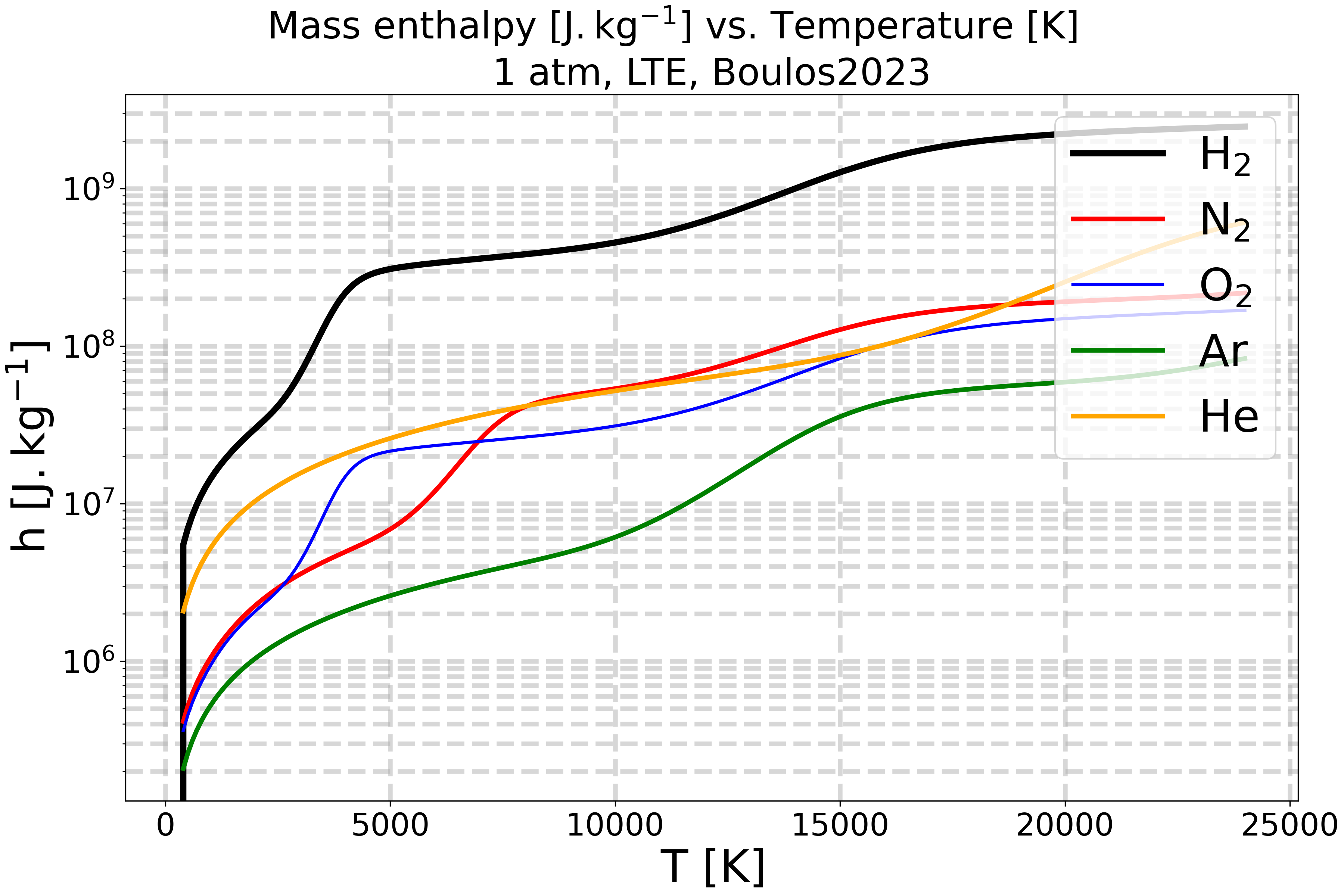

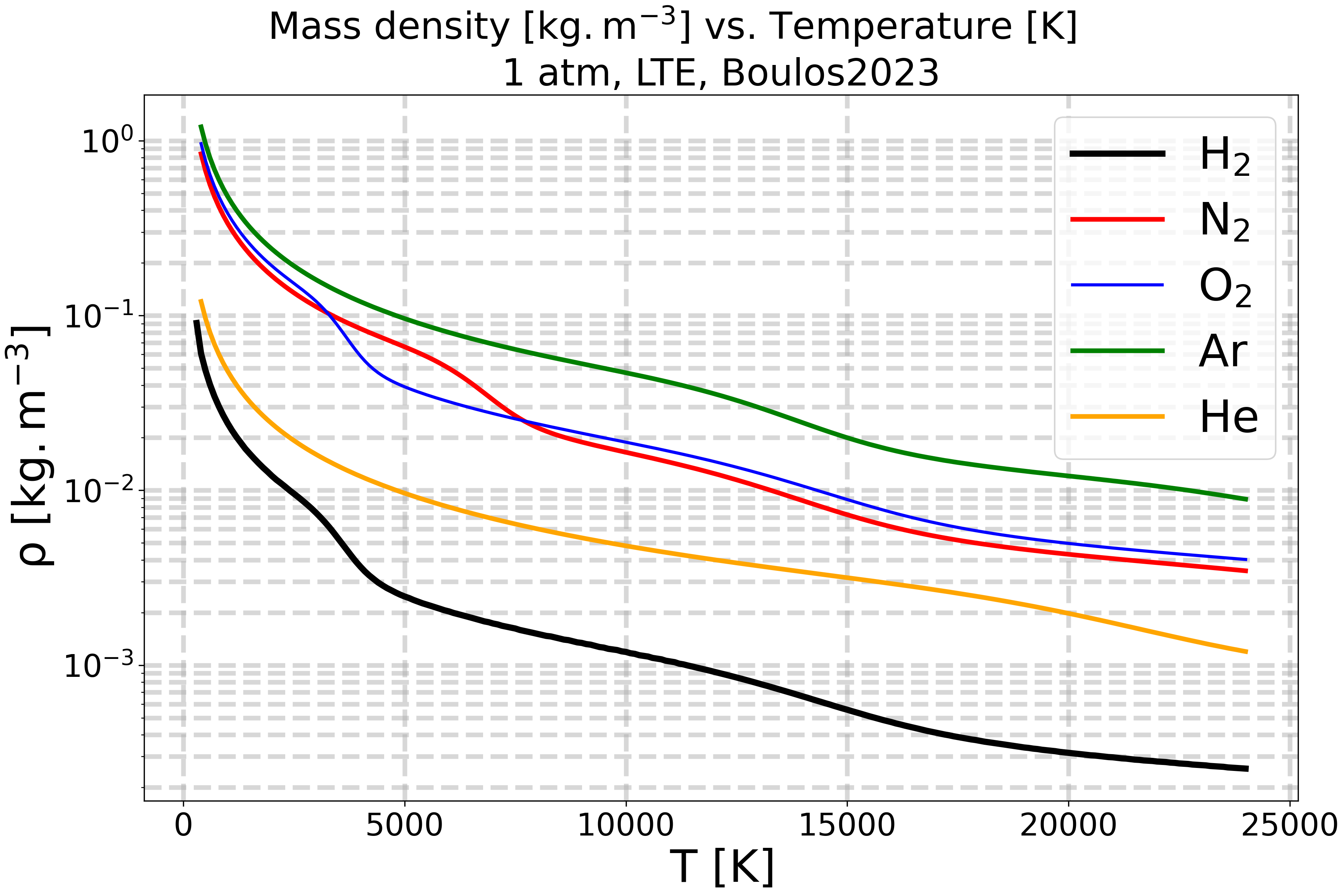

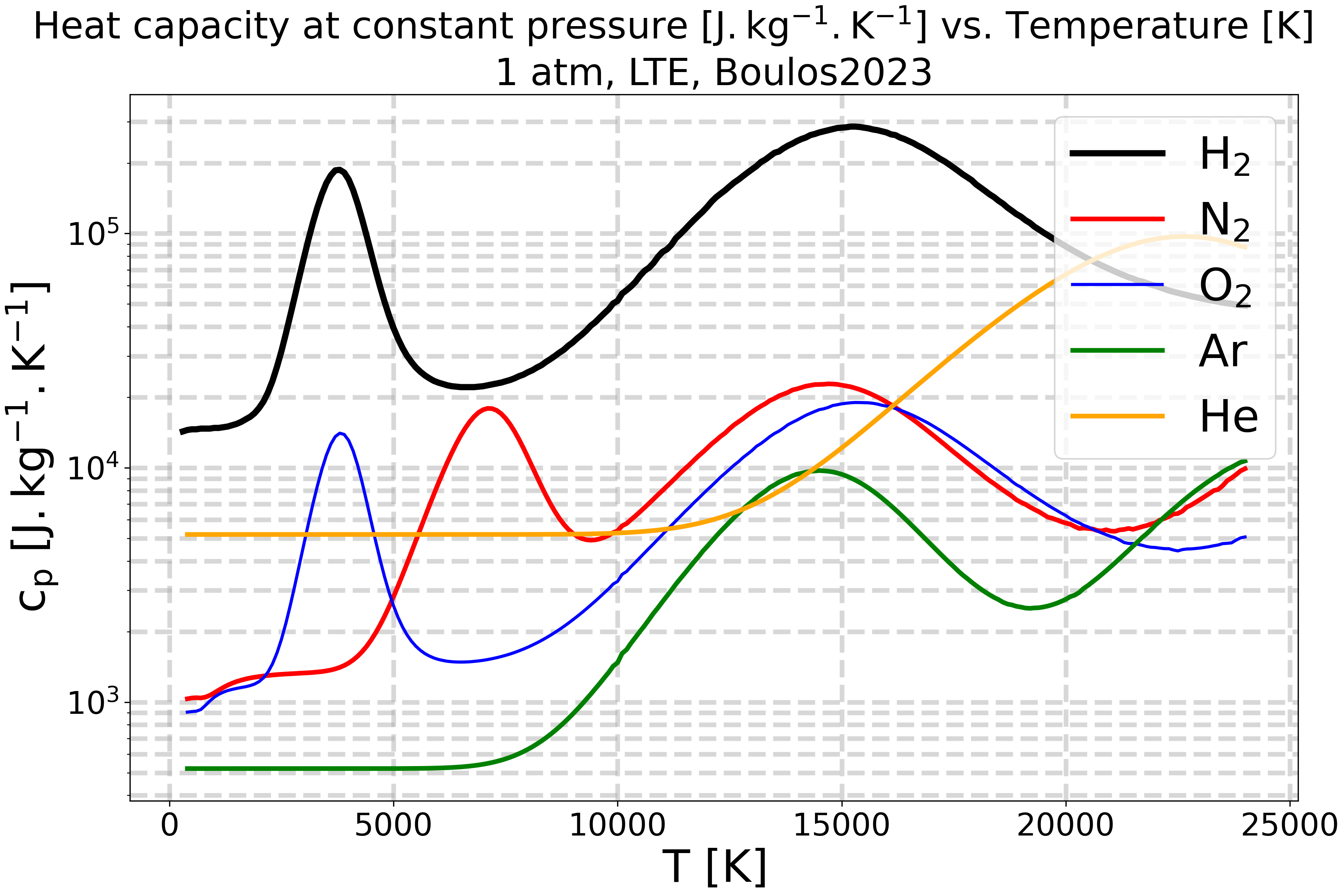

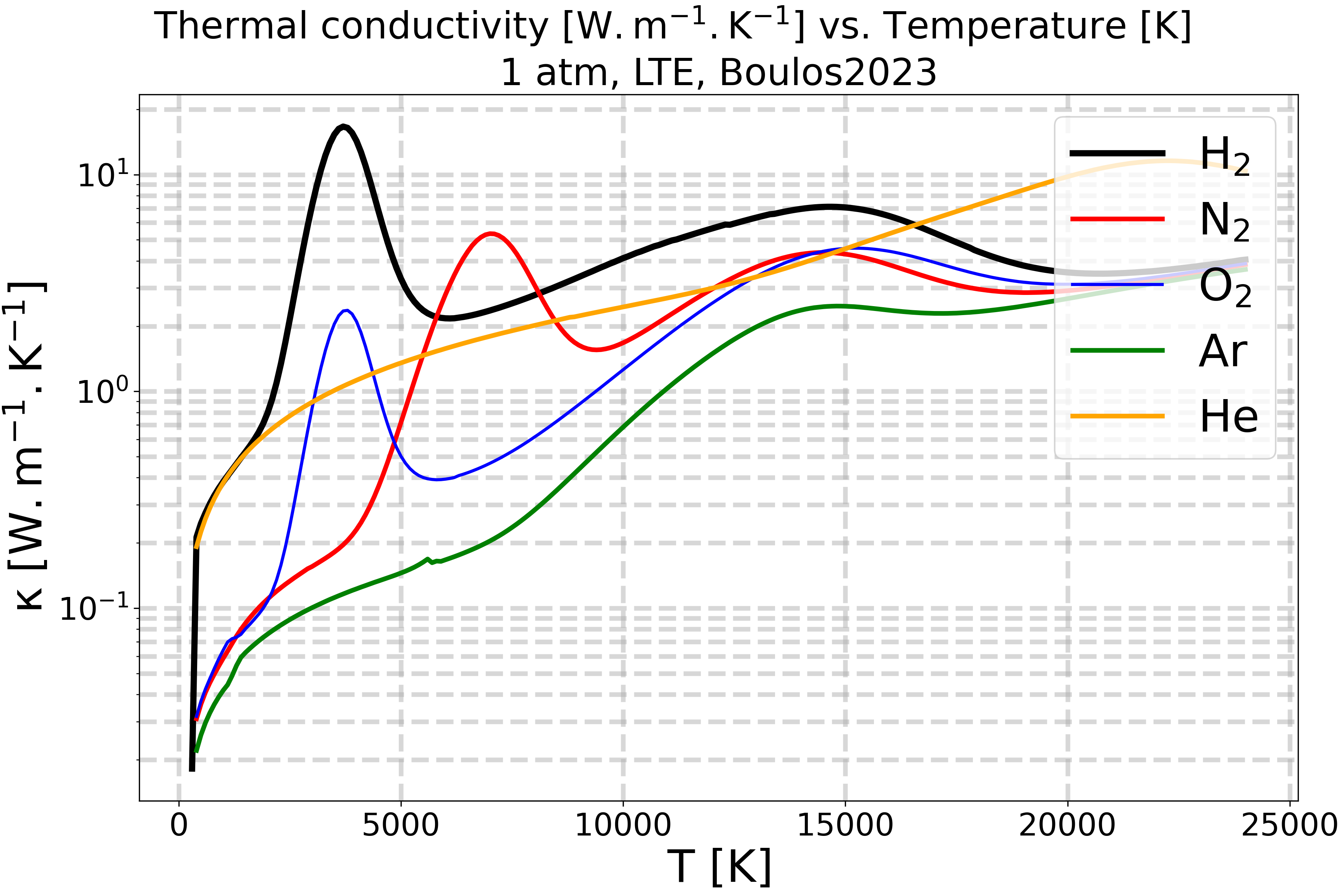

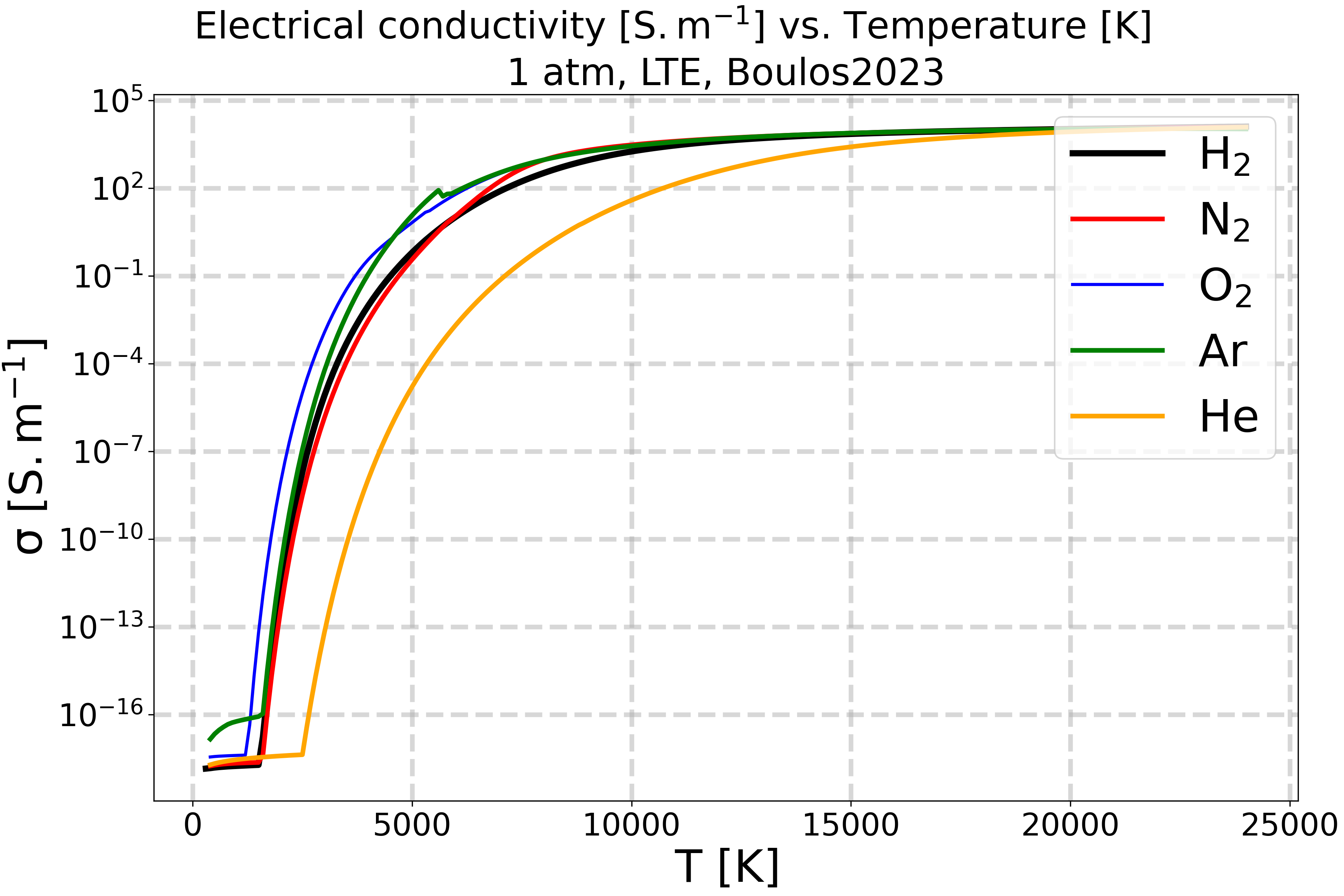

Plot all physical properties vs. temperature.

physical_properties = ["rho", "cp", "h", "kappa", "sigma", "mu"]

for physical_property in physical_properties:
    fig, ax = plt.subplots()

    for data, options in zip(datas, plot_options):
        data.plot(
            x="T",
            y=physical_property,
            fig_ax=(fig, ax),
            show=False,
            yscale="log",
            ax_title="1 atm, LTE, Boulos2023",
            **options,  # type: ignore
        )

    ax.legend()
    plt.show()

•
•
•
•
•
•
